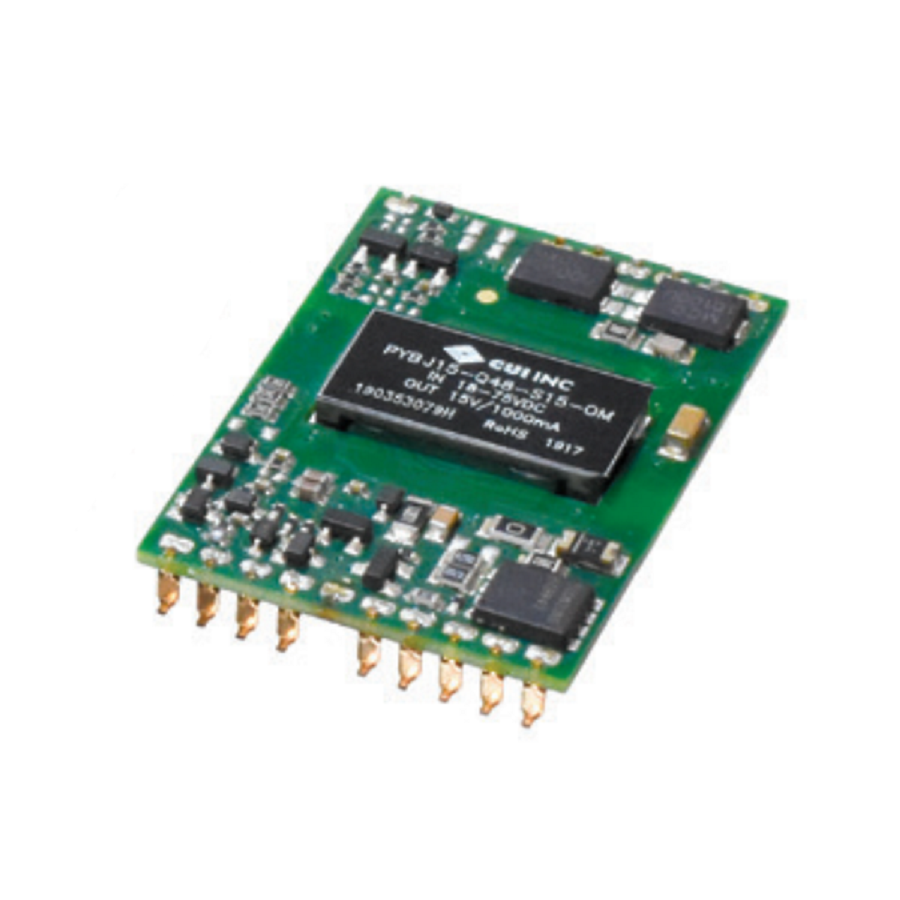

PYBJ15-Q24-S12-OM
Manufacturer:
Same Sky
Mfr.Part #:
PYBJ15-Q24-S12-OM
Datasheet:
Description:
DC to DC Converters SMD/SMT Nominal Input Voltage:9 V to 36 V Min Input Voltage:9 V Max Input Voltage:36 V 89 %
| Parameter | Value |
|---|---|
| Length | 38.7 mm |
| Width | 27.2 mm |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Height | 5.8 mm |
| Packaging | Tray |
| RoHS | Compliant |
| Min Input Voltage | 9 V |
| Max Input Voltage | 36 V |
| Number of Outputs | 1 |
| Isolation Voltage | 1.5 kV |
| Output Power | 15 W |
| Efficiency | 89 % |
| Nominal Input Voltage | 9 V to 36 V |
| Output Current-Channel 1 | 1.25 A |
| Output Voltage-Channel 1 | 12 V |
Stock: 27
Distributors
pcbx
pcbxUnit Price$18.35534
Ext.Price$18.35534
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $18.35534 | $18.35534 |
| 10 | $18.24151 | $182.41510 |
| 25 | $18.12839 | $453.20975 |
| 50 | $18.01597 | $900.79850 |
| 100 | $17.90425 | $1790.42500 |
| 300 | $17.79322 | $5337.96600 |
| 500 | $17.68288 | $8841.44000 |
| 1000 | $17.57307 | $17573.07000 |
